Finding the correct 2007 Toyota Yaris fuse box diagram instantly can save you time and stress. Discover simple steps to locate your fuse box and resolve electrical glitches quickly. Let’s dive in and empower you to handle common fuse and circuit issues like a pro!
How to Access and Use Your Fuse Box Diagram
Your vehicle’s fuse box diagram is an indispensable tool for understanding your car’s electrical layout. In your 2007 Toyota Yaris, you’ll typically find the primary fuse panel under the dashboard on the driver's side, while a secondary fuse box resides under the hood near the battery. Check your owner’s manual to confirm these positions with the printed diagram. Using the correct fuse box location information is key to beginning your troubleshooting process.
Identifying the Fuse Box Location
Look beneath the dashboard on the driver's side to locate the main cabin fuse box.

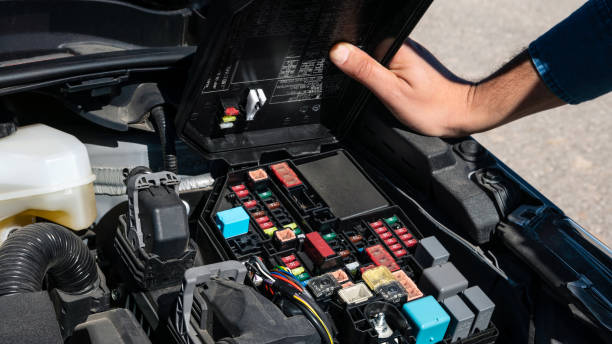

Search under the hood near the battery for a secondary set of power fuses.
Reference the diagram in your vehicle manual to match the fuse numbers with their functions.
Use clear markings provided on the fuse box cover to guide you.
Step-by-Step Fuse Replacement Guide
Replacing a faulty fuse can quickly resolve many electrical issues. Follow this organized guide to ensure proper fuse replacement and avoid any potential mishaps:
Tools You'll Need
A set of replacement fuses (commonly 10A, 15A, or 20A based on your needs)
Needle-nose pliers for gentle removal
A reliable flashlight to illuminate dark spaces
Your vehicle's owner manual for accurate diagram verification
A multimeter for checking fuse continuity
4-Step Replacement Process
Locate the Faulty Fuse: Use the 2007 Toyota Yaris fuse box diagram to pinpoint the defective fuse by its designated number and function.

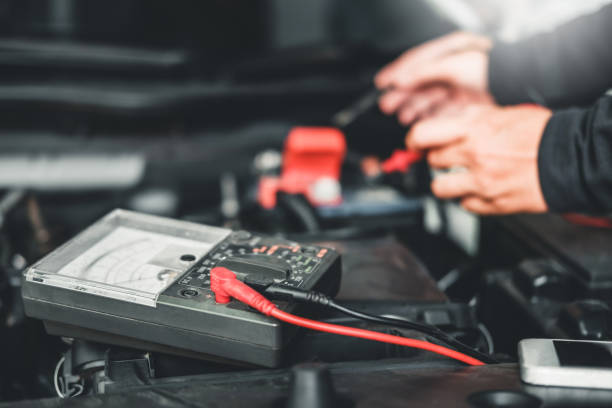

Test for Continuity: Use a multimeter to verify if the fuse is indeed blown, or inspect it visually for a broken filament.

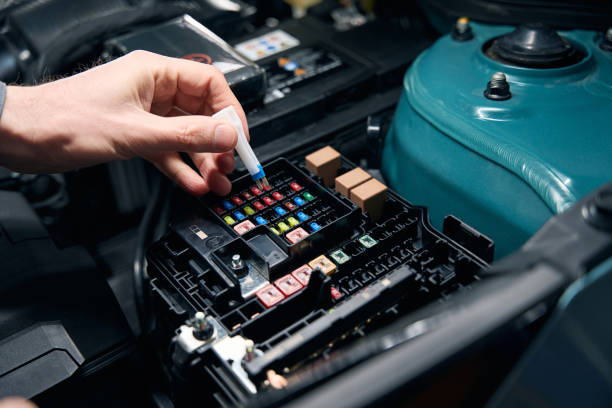

Remove the Defective Fuse: Gently pull out the faulty fuse with needle-nose pliers or a dedicated extraction tool, taking care not to damage surrounding components.
Install the New Fuse: Insert a new fuse that matches the original amperage rating. Always adhere to the specified fuse rating to safeguard your electrical system against further damage.
Warning: Always ensure that you do not exceed the recommended amperage to avoid electrical surges that might harm your vehicle.
Common Electrical Issues and Solutions
Electrical problems can be both puzzling and frustrating. Use the table below to match common symptoms with potential fuse problems, referencing your 2007 Toyota Yaris fuse box diagram for more clarity:
Symptom | Likely Fuse | Fuse Box Location |
|---|---|---|
Dashboard lights out | TAIL (10A) | Main cabin fuse box |
Power windows unresponsive | POWER (30A) | Under the hood |
AC not cooling properly | IG2 (7.5A) | Main cabin fuse box |
Keep a spare set of fuses in your glove compartment. Many automotive shops in the UAE and neighboring regions offer Toyota-compatible kits generally priced around AED 25/SAR 25—making replacements both accessible and affordable. Clear labeling of your fuse diagram can streamline future troubleshooting.
Maintenance Best Practices for 2025
Regular maintenance of your fuse box system can help prevent unexpected breakdowns. Consider incorporating these steps into your quarterly vehicle check-up:
Visual Inspection: Look for signs of corrosion or discoloration on the fuses and terminals.
Circuit Testing: Test rarely used circuits, such as those controlling the trunk light or accessory systems.
Clean the Area: Keep the fuse box area free from dust and debris, which might lead to poor connectivity or short circuits.
Upgrade Precautions: Consider installing voltage stabilizers or circuit protectors available at reputable auto parts stores to mitigate power surges.
Taking these steps ensures that your 2007 Toyota Yaris remains reliable while adapting to modern 2025 maintenance practices.
FAQ
Q1:How do I quickly locate the fuse box in my 2007 Toyota Yaris?
Your 2007 Toyota Yaris fuse box diagram indicates that you should first check under the dashboard on the driver's side and then under the hood near the battery. This layout is designed to separate the cabin systems from power circuits. Use your owner's manual for additional confirmation and specific fuse locations. Familiarizing yourself with these zones can make troubleshooting much more efficient and stress-free.
Q2:What tools are essential for replacing a fuse in my vehicle?
You will need a set of replacement fuses that match the amperage specified in the diagram, needle-nose pliers for careful removal, a flashlight for better visibility, and a multimeter to check for continuity. Ensuring that you have the right tools at hand can prevent accidental damage to other components. This list is especially useful for quick fixes during unexpected electrical issues. Maintaining a small tool kit in your car is always a smart move.
Q3:How can I troubleshoot common electrical issues found in the fuse box?
Start by referencing your 2007 Toyota Yaris fuse box diagram to identify which fuse corresponds to the malfunctioning component. Check for any visible signs of damage such as a blown fuse or corrosion. Use the multimeter to test the suspected fuse and follow the replacement steps meticulously. A systematic approach not only saves time but also minimizes the risk of further issues. Keep a record of any recurring problems for future reference.
Q4:Are there any best practices to maintain the fuse box system over time?
Yes, regular maintenance is crucial for long-term vehicle reliability. Perform a quarterly visual inspection of your fuse box to spot signs of corrosion or wear. Test rarely used circuits periodically and keep the area around the fuse box clean from dust and debris. Upgrading your electrical system with voltage stabilizers or circuit protectors can also protect your vehicle from unexpected power surges. This proactive approach can significantly extend the lifespan of your fuse box system.
This article is for reference only; please refer to the latest local laws and regulations for complete guidance.
