If you own a 2013 Ford Edge and find yourself dealing with a faulty backup camera, you're in the right place! This concise guide provides clear, step-by-step instructions to help you tackle your backup camera replacement. With detailed directions, necessary tool lists, and cost-saving tips, you'll be on your way to a smooth upgrade in 2025.
How to Replace Your Backup Camera in 6 Steps
Upgrading your backup camera doesn't have to be overwhelming. Follow these six straightforward steps:
Disconnect the Battery: Always start by disconnecting the negative terminal of your battery to ensure safety during the installation process. This step helps prevent any electrical shorts while you work.
Remove the Trunk Lid Interior Panel: Carefully remove the trunk lid interior panel. You will typically need to release around 7 plastic clips. A trim removal toolkit can make this process smoother and help avoid any damage.
Unplug the Camera Harness: Locate the camera harness behind the panel. Press the gray release tab and gently unplug the connection to detach the faulty unit.

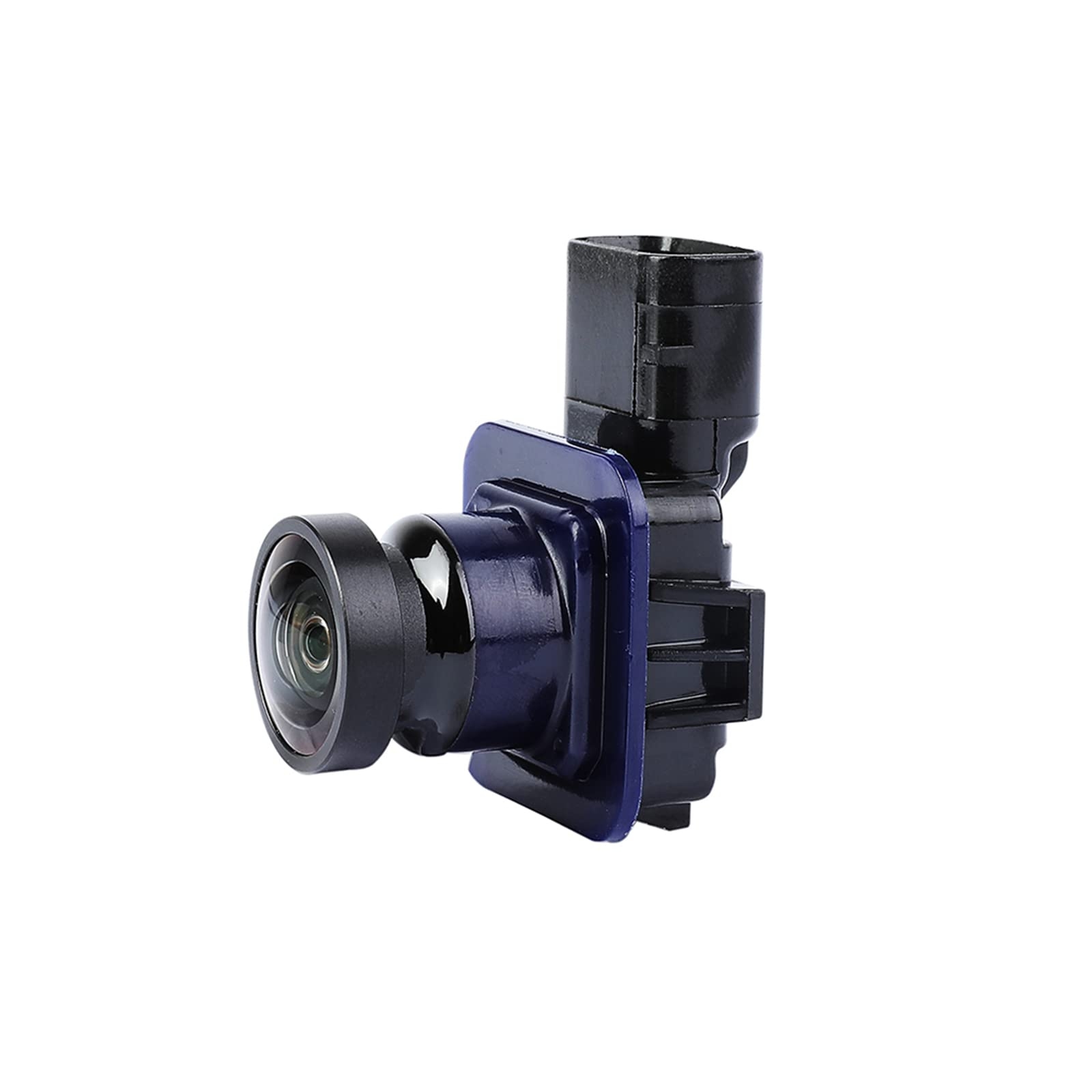

Install the New Camera: Position your new OEM backup camera (part number BT4Z-19G490-C) using the existing mounting bracket. Ensure that the wiring is properly aligned with the connectors.
Test the Functionality: Before reassembling the panel, reconnect the battery momentarily to test the new camera. Confirm that all features, including the camera angle and night vision, are working properly.
Reassemble: With the camera functioning correctly, secure all panels back into their original positions and finally reconnect the battery for regular use.
Key Compatibility Considerations
Ensuring that your new backup camera is fully compatible with your 2013 Ford Edge is crucial. Take a look at the table below, which compares essential features against the 2025 upgrade options:
Feature | 2013 Model Requirement | 2025 Upgrade Option |
|---|---|---|
Resolution | 480p | 720p HD |
Connector Type | 8-pin Ford OEM | Universal adapter |
Night Vision | Basic IR | Dynamic thermal imaging |
Common Installation Challenges
Solving Alignment Issues

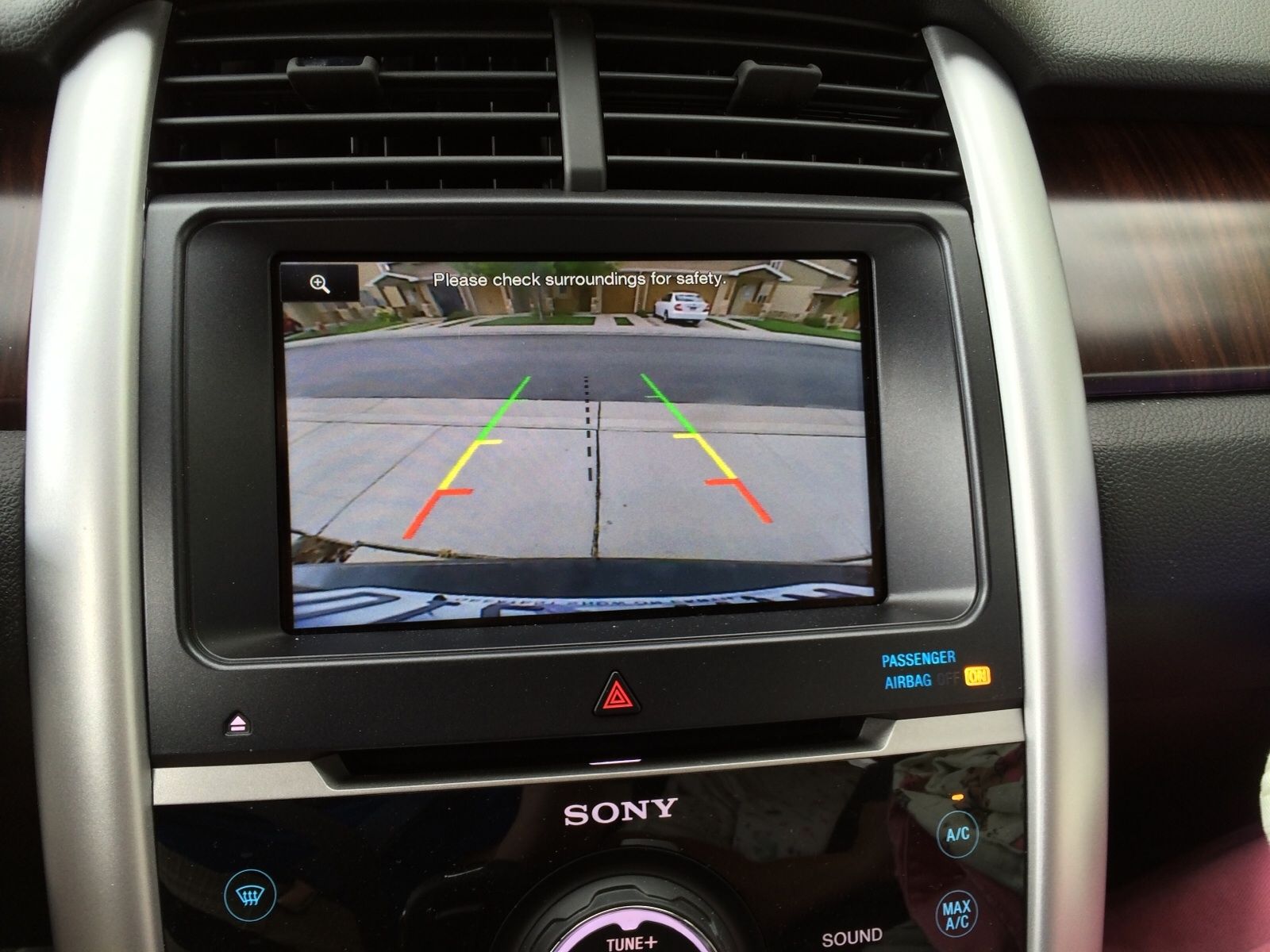

Sometimes you may notice that the camera’s viewing guidelines appear crooked. If this happens, don’t worry—you can fix it by checking a few key points:
Inspect the mounting bracket to ensure it is oriented correctly.
Verify that the harness is fully seated in its connector.
Reset the system by holding both the power and seek buttons for about 10 seconds to restore proper alignment.
Maintenance Tips for Longevity
Caring for your backup camera will extend its lifespan and maintain clear visuals. Consider these simple maintenance tips:
Clean the camera lens once a week using a microfiber cloth to prevent streaks or smudges.
Use a silicone spray on the connector ports annually to prevent corrosion.
Be cautious with high-pressure car washes as they may force water into sensitive areas, reducing the camera’s effectiveness.
Cost Comparison:DIY vs Professional Service
When deciding whether to replace the backup camera yourself or seek professional help, consider the following cost breakdown:
DIY Total: AED 120 – AED 180 / SAR 120 – SAR 180 (includes parts and basic tools)
Dealer Service: AED 400 – AED 600 / SAR 400 – SAR 600
Mobile Mechanic: AED 250 – AED 350 / SAR 250 – SAR 350
This guide supports a DIY approach that saves you money and gives you full control over the installation process while ensuring compatibility with GCC certification standards.
FAQ
Q1:How do I know if the replacement backup camera is compatible with my 2013 Ford Edge?
Make sure to check the OEM part number and compare it with your existing camera. Using a camera with matching specifications, such as the connector type and resolution (480p for the 2013 model), is crucial. Also, verify if the replacement unit offers the additional features you desire, like enhanced night vision. Consulting with your local Ford dealership using your VIN can ensure compliance with GCC certification standards. This step is essential for a hassle-free installation.
Q2:Can I perform this replacement without professional help?
Absolutely, many car enthusiasts successfully handle backup camera replacements on their own. The procedure is simplified by clearly outlined steps in this guide, allowing you to take control of the installation. However, if you're ever uncomfortable or unsure about any step during the process, professional help is always an option. Always ensure you have the correct tools and reliable replacement parts before starting. Remember, safety is the top priority during any DIY automotive repair.
Q3:What essential tools are needed for replacing the backup camera on my Ford Edge?
You will need a Phillips screwdriver set (sizes #20 and #25), a trim removal toolkit, and a Torx T30 security bit. Adding an electrical contact cleaner can also improve connectivity by cleaning the connectors. These tools help ensure that you can remove the panels and secure the new camera without causing damage. Investing in the right tools makes the process smoother and increases your success rate.
Q4:What should I do if the new backup camera still shows alignment issues after installation?
If the guidelines appear misaligned post-installation, double-check the mounting bracket positioning. Ensure the wiring harness is correctly connected and the bracket is firmly secured. A short system reset—by holding the power and seek buttons for 10 seconds—might help recalibrate the camera. If the issue persists, it could indicate a deeper compatibility problem, and you might consider professional inspection. This troubleshooting process is an important step to ensure reliable daily performance.
Q5:How often should I perform maintenance on my backup camera?
Regular maintenance is key to prolonging the life of your backup camera. Aim to clean the lens once every week and inspect the wiring and connections monthly. An annual application of silicone spray on the connector ports can prevent corrosion, given the humid conditions in some regions. Performing these simple tasks will help maintain a clear view and consistent operation. Routine care not only prevents issues but also helps you catch potential problems early.
This article is for reference only; please adhere to your local laws and regulations.
