Discover the secrets behind your Honda CR-V Belt Diagram! In just a few minutes, you’ll be empowered with crucial steps to tackle belt replacements and adjustments with confidence. Dive into this guide and transform your maintenance routine!
How to Read Your 2025 CR-V Belt Diagram
Your vehicle’s belt diagram is more than just a simple illustration; it’s a roadmap to proper engine maintenance. When you open the hood of your 2025 CR-V, you should look for a metal decal near the radiator. This diagram provides clear directions on the serpentine belt path, belt tensioner location, and overall drive belt routing. Especially for drivers dealing with high temperatures in the UAE or similar climates, this essential guide helps you avoid the common pitfalls encountered during serpentine belt replacement.
Tools You'll Need for Belt Inspection
Before you start, gather your tools to ensure a smooth process. You will need:
A powerful flashlight (300+ lumens) to clearly see every detail
The manufacturer’s service manual (2025 Edition) for precise OEM instructions
A smartphone camera to capture the diagram for reference during belt tensioner adjustment and potential troubleshooting
These tools are indispensable when undertaking tasks such as serpentine belt replacement and checking the 2025 CR-V Engine Layout.
Locating the Belt Routing Decal
Inside your 2025 CR-V’s engine bay, find the metal plate affixed near the radiator. This plate displays the belt routing diagram, highlighting the accessory drive sequence and tensioner pulley position. For UAE drivers, noting the diagram is crucial since the belt system can be affected by the region's intense heat. Keeping this decal in mind ensures you are following the correct drive belt path when you replace your belt.
Interpreting Directional Arrows
Modern belt diagrams use visual cues to guide you. In your diagram:
Red arrows indicate clockwise rotation
Blue arrows suggest counter-clockwise movement
Dotted lines highlight hidden pulley routes
Understanding these indicators is essential before you start replacing your serpentine belt, as each arrow guides the belt tensioner adjustment and ensures proper installation.
Understanding the 2025 CR-V Belt System
A thorough grasp of your belt system aids in both maintenance and troubleshooting. Below is a detailed comparison for different 2025 CR-V models:
Feature | 2025 CR-V 1.5L Turbo | 2025 CR-V Hybrid |
|---|---|---|
Belt Length | 86.3 inches | 92.1 inches |
Rib Count | 6 | 8 |
OEM Part # | 31100-TVA-A11 | 31100-TWA-B52 |
Each model has distinct specifications that guide proper belt selection and installation. Familiarize yourself with these numbers to ensure accurate serpentine belt replacement. Moreover, understanding the individual differences in the 2025 CR-V engine layout can help you troubleshoot issues more effectively.
Common Wear Patterns to Recognize
Over time, belts show signs of wear. Watch for these indicators:
Glazing: A shiny surface may indicate over-tightening

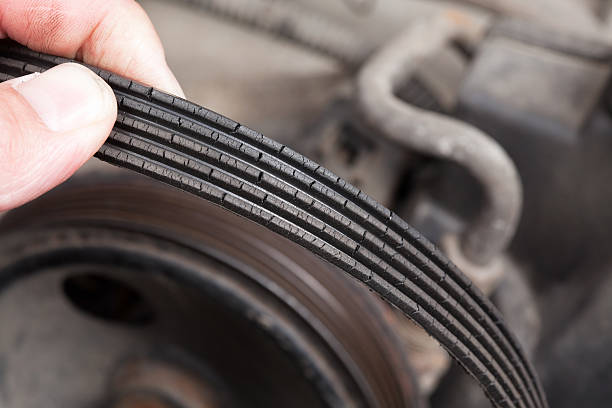

Cracked ribs: Typically a sign of age-related deterioration
Missing chunks: Often caused by pulley misalignment
Recognizing these issues early allows you to take corrective action before a minor problem evolves into a major repair.
Professional Maintenance Recommendations
Adhering to professional maintenance guidelines is key to vehicle longevity. Here are some recommendations to keep your belt system in optimal condition:
Replace your serpentine belt every 60,000 miles
Inspect and adjust the belt tensioner assembly at every service interval
Check the idler pulleys with each oil change
In the UAE, where high temperatures can accelerate belt wear by up to 30%, it’s wise to:
Conduct monthly visual inspections
Park your car in shaded or garage environments during peak sunlight
Use only OEM-approved belt dressings to enhance durability
These maintenance steps ensure that your vehicle not only complies with GCC certification standards but also performs reliably under local conditions.
Troubleshooting Belt System Issues
When problems arise, a systematic diagnostic approach will help. Start by listening to any unusual noises and performing simple checks:
Squealing noise?
Check the tensioner pressure to determine if proper belt tension is maintained.
Visible belt damage?
If you find worn or cracked sections, replace the belt immediately to avoid further issues.
Following this flow helps avoid common mistakes during drive belt replacement. Once repairs are done, make sure to review the performance and condition of your accessory systems (like the alternator and AC).
Post-Installation Checklist
After you complete a belt replacement, verify the following:
The belt deflects about 5mm under gentle thumb pressure
All pulleys rotate smoothly without resistance
The AC and alternator function properly
A quick post-installation check prevents recurring issues and reassures you that every element—from the belt tensioner to the hidden pulley—has been correctly addressed.
FAQ
Q1:What should I do if my belt continues to squeal even after adjustments?
If your belt continues to squeal after you've made the necessary adjustments, it might be due to excessive wear. Check the belt routing and ensure every component is aligned perfectly as per the Honda CR-V Belt Diagram. This noise could be an indication that the belt is nearing the end of its service life, especially under severe UAE weather conditions. Evaluate the belt’s tensioner and pulleys for any wear. If uncertainty persists, seeking professional assistance could be the best route to avoid further damage.
Q2:How can I tell if my serpentine belt needs replacement?
You can often tell your serpentine belt needs replacement by inspecting it for common wear signs like glazing, cracks, or chunks missing along the ribbed surface. If you notice an increased level of noise or the belt seems misaligned, it’s time for a replacement. Regular inspections based on the guidelines outlined in this guide can prevent unexpected breakdowns. Being proactive with serpentine belt replacement helps maintain optimal engine performance, especially in extreme weather conditions like those in the UAE.
Q3:Can extreme heat in the UAE affect my CR-V’s belt system?
Absolutely, extreme heat in the UAE can have a significant impact on your belt system, accelerating wear by up to 30% compared to milder climates. High temperatures make the belt and its components more susceptible to degradation, potentially leading to early failure. To combat this, it is essential to perform more frequent inspections and consider using belt dressings as recommended. Maintaining a keen eye on your 2025 Honda CR-V Belt Diagram during every inspection will ensure you catch any signs of wear early on.
Q4:How often should I check the belt tensioner assembly?
It is wise to check the belt tensioner assembly with every routine service, such as an oil change, to ensure it maintains the correct pressure. A properly adjusted tensioner is crucial for the longevity of your serpentine belt and the smooth operation of accessory components. Regular checks help detect any misalignment or wear before it evolves into a more serious problem. This preventive measure not only lengthens the life of your belt but also contributes to overall engine efficiency.
