Your search for the best way to locate your Nissan Sentra fuse box location ends here! Discover straightforward steps, useful tools, and expert tips designed specifically for the 2025 model, ensuring you quickly overcome any electrical issues.
How to Access Your Sentra's Fuse Panel
When you need to work on your vehicle's electrical system, finding the fuse box quickly is crucial. Start by gathering a few essential tools to make the process smoother:
Vehicle owner's manual (2025 edition) – This contains the fuse diagram and relay panel details.
A flathead screwdriver for any trim removal without scratching the interior.
A reliable flashlight to help in low-light conditions, especially if you’re checking during early mornings or late evenings.
Needle-nose pliers to safely extract any stubborn fuses.
Step-by-Step Access Guide
Accessing the Lower Dashboard Fuse Panel:Position yourself beside the driver's door and look for a rectangular panel beneath the steering column. The 2025 version offers a user-friendly quick-release tab that eliminates the need for traditional screws. With a gentle press, the panel opens smoothly. This area is designed to house fuses for several interior components, including the audio system and dashboard lights.

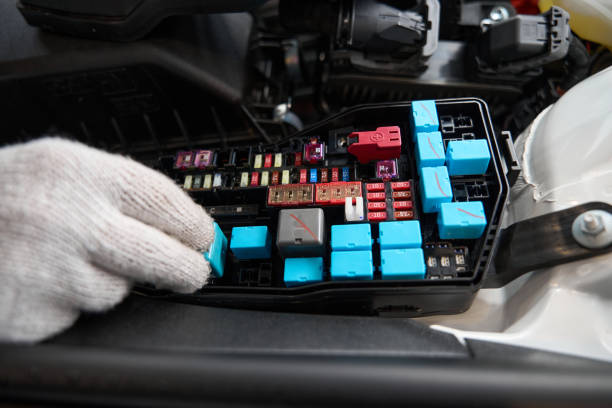

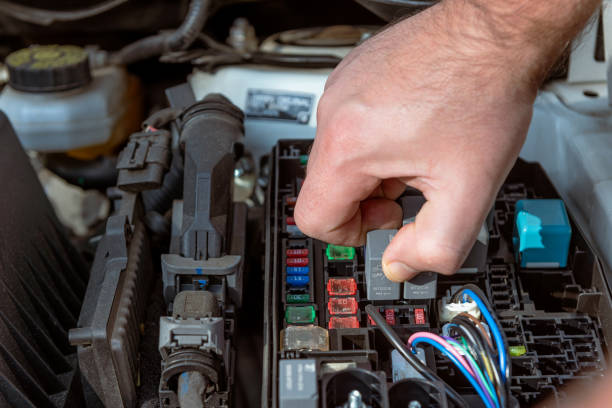

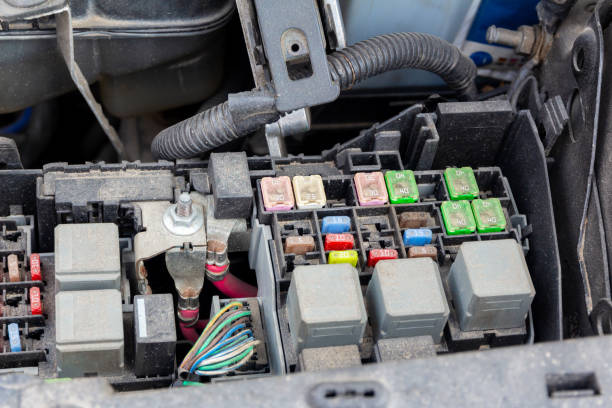

Locating the Secondary Fuse Compartment Under the Hood:Open the hood and examine the engine bay near the battery. You will notice a black plastic fuse box marked with a small ⚡ symbol that indicates its purpose. This compartment includes fuses for critical engine-related systems such as the headlight relays, engine control module, and fuel pump circuit. Its location is strategically placed to allow easy access during electrical troubleshooting.
Understanding Your Fuse Diagram
Familiarizing yourself with the fuse diagram is essential for making accurate replacements and repairs. The diagram in your owner's manual uses a clear color coding system that helps you quickly identify which fuse corresponds to which system. Here’s a typical breakdown for the 2025 model:
Color | Amperage | Common Use |
|---|---|---|
Yellow | 20A | Power windows |
Green | 15A | Dashboard lights |
Red | 10A | Audio system |
Take some time to study the fuse diagram and note where the relay panel is located on the chart. This practice will enhance your understanding of the inherent electrical troubleshooting steps that you may need to perform later on.
Climate-Specific Considerations
Given the challenges of high temperatures in the GCC region, the 2025 Nissan Sentra has been engineered with enhanced safety features in mind. For instance, certain models include an extra 30A fuse dedicated to the premium AC system, ensuring optimal performance under high heat. In addition, a dedicated fuse slot exists for auxiliary USB ports and daytime running lights, which may be impacted by prolonged exposure to elevated temperatures. These adjustments reflect GCC certification standards, making your vehicle more resilient and efficient.
Maintenance Tips for Hot Climates
Maintaining your fuse system proactively will help avoid sudden electrical failures, especially in harsh climates:
Perform monthly visual inspections during cooler morning hours to check for any signs of wear.
Replace any corroded or damaged fuses right away to prevent further oxidation.
Always keep spare fuses, typically 10A and 15A types, stored safely in your glove compartment.
When replacing a fuse, consider applying a small amount of dielectric grease on the contacts to improve conductivity and reduce future corrosion.
Common Access Mistakes to Avoid
Even with a clear guide, a few common pitfalls can complicate your repair work. Here are a few reminders for a hassle-free experience:
Avoid applying excessive force when opening the fuse panel since the snap-fit design of the 2025 model can break if mishandled.
Ensure you do not mix fuse types – distinguishing between micro, mini, and standard fuses is crucial for proper replacement.
Carefully check relay positions. The relays, typically marked with labels such as R1 through R8, are integral to your vehicle’s performance.
Do not overlook the secondary fuse box located under the hood; it is just as critical as the one inside the dashboard.
When to Visit a Professional
If you encounter persistent electrical issues even after replacing faulty fuses, it may be time to consult a professional. Signs that you might need expert help include:
Experiencing repeated fuse failures, such as having to replace more than three fuses in a month.
Noticing a burning smell that emanates from the fuse panel area, which could indicate overheating issues.
Persistent electrical malfunctions despite ensuring all fuses are intact and correctly replaced.
Dashboard warning lights remain active even after you have inspected and replaced suspect components.
Taking your vehicle to an authorized Nissan service center ensures the proper handling of any deeper electrical challenges and adheres to GCC-certified repair standards.
FAQ
Q1:Where exactly is the fuse box located in my 2025 Nissan Sentra?
The primary fuse box is located under the dashboard by the driver's side, easily accessible via a quick-release tab. There is also a secondary fuse compartment under the hood near the battery that houses fuses for critical engine systems. Being aware of both locations can help you quickly troubleshoot electrical issues. By following the steps provided, you’ll have a clear path to locating both boxes with ease.
Q2:How does the fuse diagram help when working on my vehicle?
The fuse diagram is your blueprint for understanding the electrical layout of your vehicle. It tells you which fuse controls which component, making it easier to manage replacements and repairs. With clearly marked color codes and amperage ratings, the diagram allows you to avoid mix-ups and ensures proper installation. This clarity aids in effective electrical troubleshooting and keeps your vehicle running smoothly.
Q3:Do high GCC temperatures affect the fuse box performance in the 2025 Nissan Sentra?
Yes, high temperatures can impact the performance of electronic components, including the fuse box. The 2025 model has been updated to include additional measures such as a dedicated high-amperage fuse for the AC system to cope with extreme heat. Extra care during maintenance, like regular inspections and the use of dielectric grease on fuse contacts, will help prevent overheating issues. Staying proactive about fuse maintenance can mitigate the risks associated with the harsh GCC climate.
Q4:What routine maintenance should I follow for my vehicle's fuse system in a hot climate?
Maintaining the fuse system involves regular inspections and immediate replacement of any damaged components. It is wise to check the fuse box monthly during cooler parts of the day and replace any corroded fuses to avoid oxidation. Keeping a small stock of spare fuses in your glove compartment makes it convenient to address any quick fixes. By following these simple steps, you help ensure uninterrupted performance and prolong the life of your electrical system.
