Are you experiencing issues with your Nissan Sunny fuse box diagram? This guide provides clear, step-by-step instructions to pinpoint the fuse box location, interpret fuse symbols, and perform quick replacements. Designed especially for Gulf region drivers, our practical advice will help you master the essentials of fuse maintenance.
How to Find Your Fuse Box in 3 Minutes
Driver's Side Dashboard Access
For Nissan Sunny models from 2012 to 2025, the primary fuse panel is conveniently located beneath the steering wheel. You simply need to remove the rectangular plastic cover that can usually be popped off without any tools, revealing a neatly printed diagram on the inside. Once the cover is off, you can see up to 32 fuses arranged in four vertical columns. This clear layout helps you quickly identify which fuse corresponds to your vehicle’s electrical system, making troubleshooting and replacement fast and straightforward.

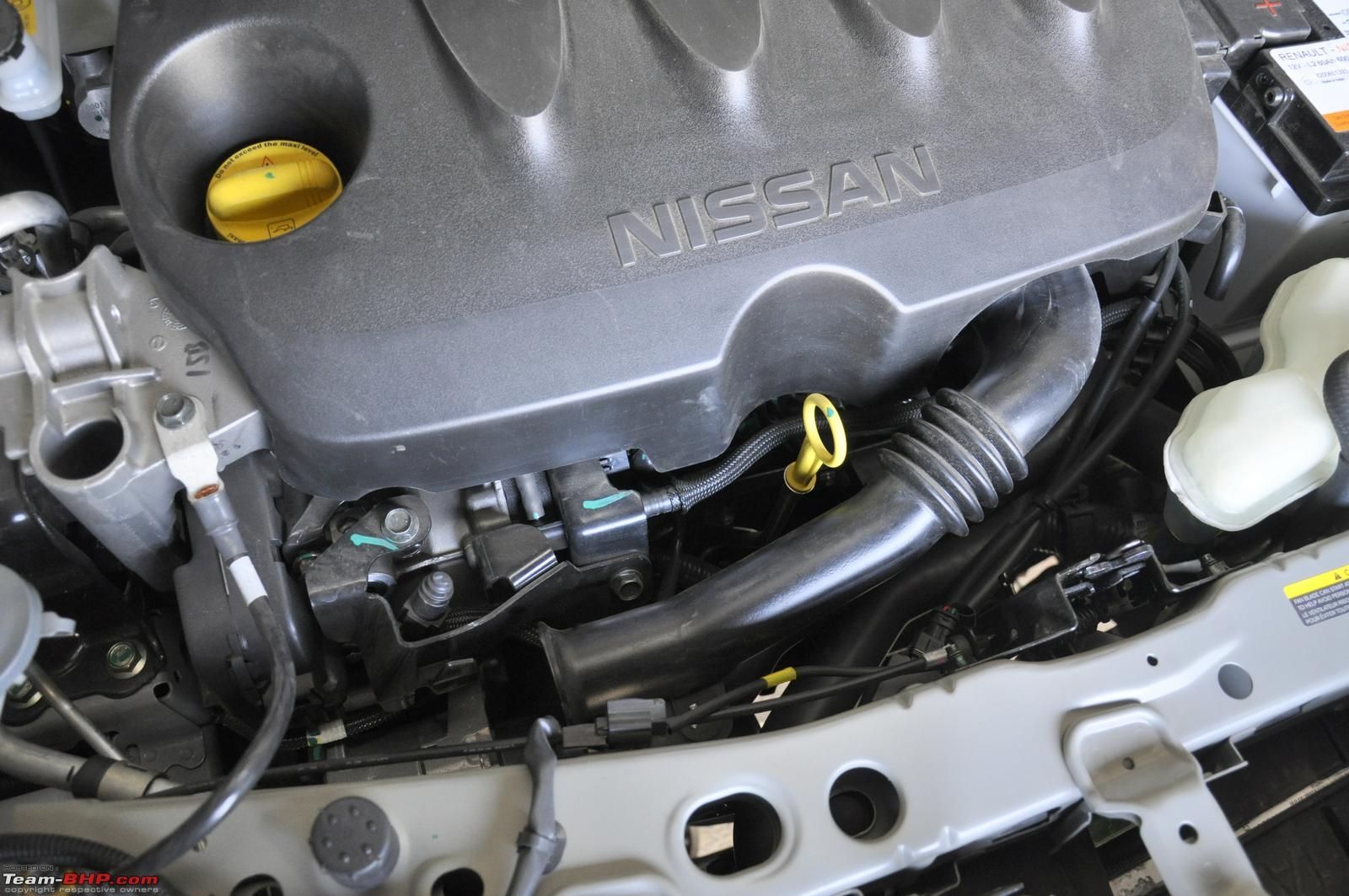

Engine Compartment Layout

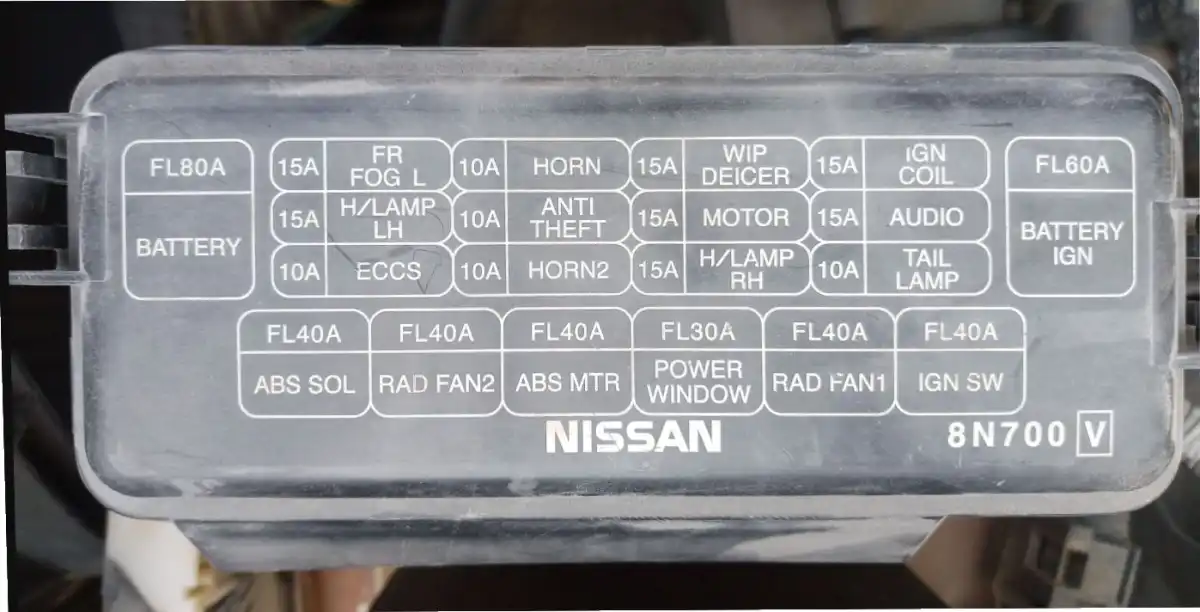

In the more recent models, particularly those from 2020 onward, a secondary fuse box is installed near the battery under the hood. Open your hood and search for a sturdy black box marked clearly as the fuse panel. To access it, gently press the release clips on both sides of the box. This compartment houses about 12 high-current fuses, typically rated between 40A and 80A, ensuring that even critical systems have the proper protection. Being familiar with both the interior and the engine bay fuse boxes gives you a complete edge in electrical troubleshooting.
Understanding Fuse Symbols (2025 Edition)
Interpreting the fuse symbols is essential when working with your Nissan Sunny fuse box diagram. The diagram includes a color-coded safety system that indicates the amperage and the protected system for each fuse. Below is a simple table that helps you decode the information at a glance:
Fuse Color | Amperage | Protected Systems |
|---|---|---|
Yellow | 20A | Power windows |
Green | 15A | Dashboard lights |
Red | 10A | Radio/navigation |
Understanding these symbols allows you to quickly ascertain which fuse might be affecting a particular function if you notice issues like flickering headlights or a malfunctioning radio. The diagram printed inside your fuse box cover is crafted to avoid technical jargon, ensuring you can read and act upon it without referring to a user manual constantly.
Quick Replacement Protocol
Before you begin any fuse replacement, make sure your car is off and the key is removed from the ignition. Here’s a practical checklist to follow:
Essential Tools List
Needle-nose pliers (typically available for around 5 AED/SAR at local auto shops)
Replacement fuses that match the color coded ratings of your current fuses
A reliable flashlight; the bright beam from your phone’s LED works perfectly in many cases
Step-by-Step Process
Turn off your car and remove the keys, ensuring all electrical systems are inactive.
Locate the blown fuse by comparing its position with the fuse box diagram and checking for visible signs of damage.
Using the needle-nose pliers, carefully pull the faulty fuse straight out without tilting.
Insert the new fuse of the exact same rating into the slot, verifying that it clicks into place securely.
Maintenance Best Practices
Routine checks can save you a lot of hassle later. Consider these practical tips for maintaining your fuse box:
Perform a monthly visual check of the fuse box; a simple 2-minute inspection can spot early signs of wear.
Always keep a small assortment of spare fuses in your glove compartment for emergency replacements.
Clean your fuse contacts gently with a cotton swab at least once a year to prevent any build-up that might cause poor conductivity.
Avoid installing aftermarket accessories that exceed the recommended 15A, as this may lead to further electrical complications.
Weather-Specific Tips (UAE Drivers)
Middle Eastern weather demands special attention to your vehicle’s electrical components. Here’s what you need to know:
Intense summer heat can cause 10A fuses to fail quicker than expected. Upgrading to 15A might be necessary in some cases, provided your system supports it without risking overload.
Sandstorms are common in the region and can cause dirt and debris to clog the vents of your fuse box. A quarterly cleaning routine is highly recommended to maintain clear airflow.
High humidity levels might lead to corrosion on the fuse contacts. To prevent this, apply a thin layer of dielectric grease after cleaning.
Pro Tip:Always test a replacement fuse with a multimeter before installation. This small precaution can save you from potential electrical mishaps, and you can find these testing tools at local auto parts stores for around 89 AED/SAR.
FAQ
Q:Where exactly is the Nissan Sunny fuse box located, and does its location differ by model year?
The Nissan Sunny fuse box is primarily found under the dashboard near the steering wheel for models between 2012 and 2025. However, starting with the 2020 model, you might also have a secondary fuse box located in the engine compartment near the battery. Knowing both locations is critical for efficient troubleshooting. This dual setup ensures that you have easy access to manage both low-current and high-current fuses. Always consult your owner’s manual if there’s any uncertainty about the placement.
Q:How do I safely replace a blown fuse without causing further damage to my Nissan Sunny?
The first step is to ensure that your vehicle is completely turned off and the keys are removed. Next, locate the blown fuse by referring to your Nissan Sunny fuse box diagram. Carefully remove the damaged fuse using a pair of needle-nose pliers and replace it with a new one that has the exact same amperage rating. After the replacement, test the new fuse with a multimeter to confirm proper installation. Remember, safety is paramount when handling vehicle electrical systems.
Q:What are the common signs that indicate I should check my Nissan Sunny fuse box diagram for a blown fuse?
Common symptoms include flickering headlights, non-functional power windows, and issues with the radio or navigation system. If you notice these problems, it might be time to examine the fuse box. The dashboard or engine compartment fuse boxes are specifically designed for quick access following these signs. Checking the fuse symbols against the provided diagram can help you identify the exact fuse needing replacement. Regular maintenance checks can preempt unexpected failures, especially in extreme climates like those in the Gulf region.
Q:Can the intense heat in the Gulf region affect the performance of my Nissan Sunny's fuses?
Yes, high temperatures can degrade the quality of fuses over time, causing them to blow more frequently than in milder climates. In regions like the UAE, it’s common for drivers to experience accelerated wear on 10A fuses during the peak of summer. You might need to opt for higher-rated fuses if your electrical system allows it, but always check compatibility with your vehicle’s specifications. A routine check every month is recommended to detect any issues before they lead to significant malfunctions.
This article is for reference only. Please adhere to local regulations.
