2025 Toyota Yaris Fuse Box Location:Your Complete Visual Guide

Are you having trouble finding the toyota yaris fuse box location in your vehicle? This guide is designed with you in mind. In just a few easy steps, you'll learn exactly where to look and how to safely inspect and maintain your fuse box, specifically tailored for the UAE environment.

How to Locate Your Toyota Yaris Fuse Box (2025 Models)

Finding your fuse box doesn’t have to be a guessing game. Start by focusing on the primary location:

• Driver's Side Dashboard: Look in the lower corner of your dashboard. For right-hand drive models, kneel beside your door and check a 15 cm x 8 cm rectangular panel. This area is often the first spot where the fuse box is secured, designed with a user-friendly layout that's supported by detailed fuse diagrams in the owner's manual.

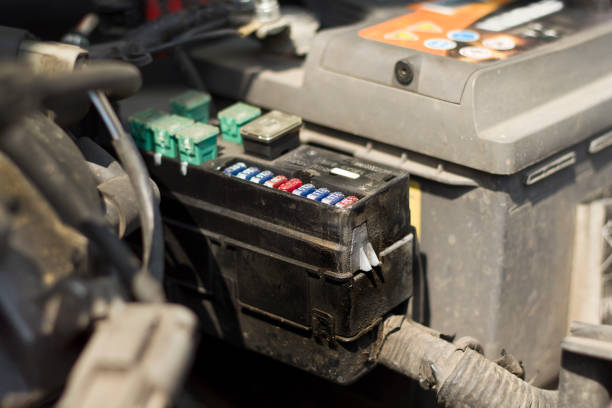

• Engine Compartment Option: Some 2025 trims come with a secondary fuse box. Open your engine bay near the battery, and you might find a black plastic cover embossed with the word "FUSE." This secondary location is especially helpful if you're troubleshooting an electrical system issue that might be affecting components like relays and fuel pumps.

Before proceeding, gather a few essential tools:

• A flat-head screwdriver for gently prying open the fuse panel.

• A reliable flashlight or your phone’s light to illuminate the area.

• The owner's manual, which provides fuse diagram details and relay placement info.

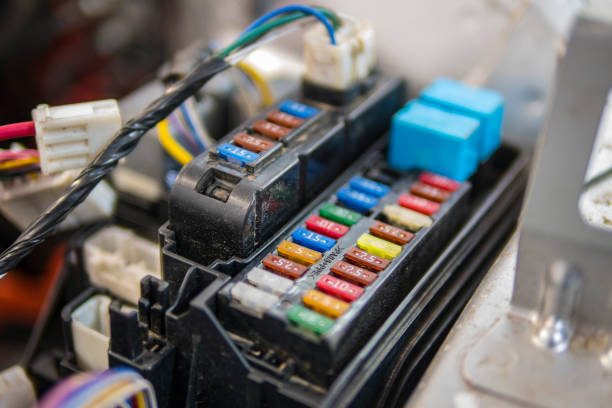

Understanding Your Fuse Box Layout

Knowing the layout helps you identify which fuse controls what. Here’s a quick breakdown with a practical table:

You will also notice that specific fuses for the starter relay and fuel pump relay are clearly marked. Their positions can be cross-referenced with the owner's manual to ensure accuracy when checking or replacing a fuse.

Maintenance Tips for UAE Climate

Maintaining your fuse box is crucial given the UAE’s unique weather conditions. Consider these steps to extend the life of your vehicle’s fuse system:

• Regular Inspections: Check your fuses monthly, especially during the peak summer months when the heat can affect fuse integrity.

• Stock Up on Fuses: Keep spare fuses (10A, 15A, 20A) in your glove compartment. This practice saves time and minimizes disruption in your daily routine.

• Prevent Moisture Damage: In coastal cities like Dubai or Abu Dhabi, moisture can be problematic. Apply dielectric grease to fuse terminals every six months to fend off corrosion and ensure reliable connectivity.

When to Consult a Professional

While this guide helps you handle basic troubleshooting, there are times when professional help is the safest option:

• Multiple Blown Fuses: If you notice several fuses failing at once, this might indicate a deeper electrical issue. Repeated fuse blowouts often hint at a larger system problem.

• Persistent Warning Lights: If a warning light continues to stay on after you’ve replaced a fuse, it’s wise to get a diagnostic check done.

• Safety First: Always disconnect the negative battery terminal before working on your fuse box. This precaution helps prevent accidental shorts and avoids any potential electrical hazards.

For your convenience, local authorized Toyota service centers in the UAE offer same-day diagnostics through the official Toyota UAE app. They adhere to GCC certification standards and ensure you receive service in AED/SAR with a commitment to quality and safety.

FAQ

1. How do I safely check and replace a fuse in my Toyota Yaris?

Before attempting a fuse replacement, always disconnect the negative battery terminal to avoid an electrical shock or short circuit. Use a flat-head screwdriver to carefully remove the fuse cover, exposing the fuse diagram. Compare the blown fuse with the diagram and check its amperage rating. Replace it with a new fuse of equivalent amperage, ensuring a snug fit and secure contact. If you experience repeated fuse issues, consider calling a professional to inspect your vehicle's electrical system.

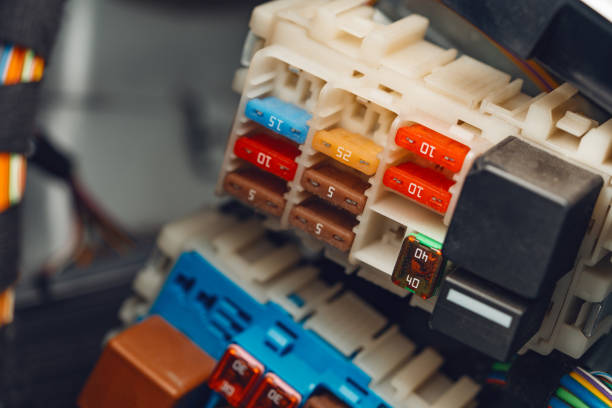

2. What do the different colored fuses indicate in my fuse box layout?

The color-coded fuses are designed to help you quickly identify the function and rating within the fuse box. For instance, red fuses usually control the audio system with a lower amperage like 10A, while blue fuses are typically used for components like power windows at 15A. Yellow fuses, rated at 20A, often operate essential functions like headlights. This system helps you troubleshoot effectively by referring to your vehicle’s fuse diagram in the manual.

3. How does the UAE’s climate affect my Toyota Yaris fuse box?

The extreme heat and coastal humidity common in the UAE can impact the integrity of your fuse box. High temperatures may cause fuses to blow more frequently, and moisture can potentially corrode fuse contacts. Regular checks, the application of dielectric grease, and storing spare fuses in a climate-controlled environment can help mitigate these issues. Monitoring your fuse system ensures that your vehicle remains reliable even in harsh weather conditions.

4. What tools should I have on hand for fuse maintenance?

For quick and efficient maintenance, you should always have a flat-head screwdriver, a reliable flashlight, and a copy of your owner’s manual close by. The manual includes detailed fuse diagrams and relay placement information that can save you time during troubleshooting. Ensuring these tools are within easy reach allows you to perform routine checks and minor replacements confidently. If you’re ever unsure, professional help is always available to guide you through the process.

This article is provided for reference only, please refer to the latest local laws and regulations.
