Looking for a reliable guide on the hyundai elantra fuse box diagram? This comprehensive guide is designed to help you quickly identify fuse locations and handle basic electrical issues. Read on and learn how to maintain your electrical system confidently!
How to Access and Replace Fuses in Your 2025 Elantra
When your vehicle experiences an electrical hiccup, you can troubleshoot the problem by checking the fuses. Follow these uncomplicated steps to safely access and replace them:
Locate Both Fuse Boxes
Interior Fuse Panel: Situated under the dashboard on the driver's side, this panel controls many of your car's interior features, including the audio system and power windows.

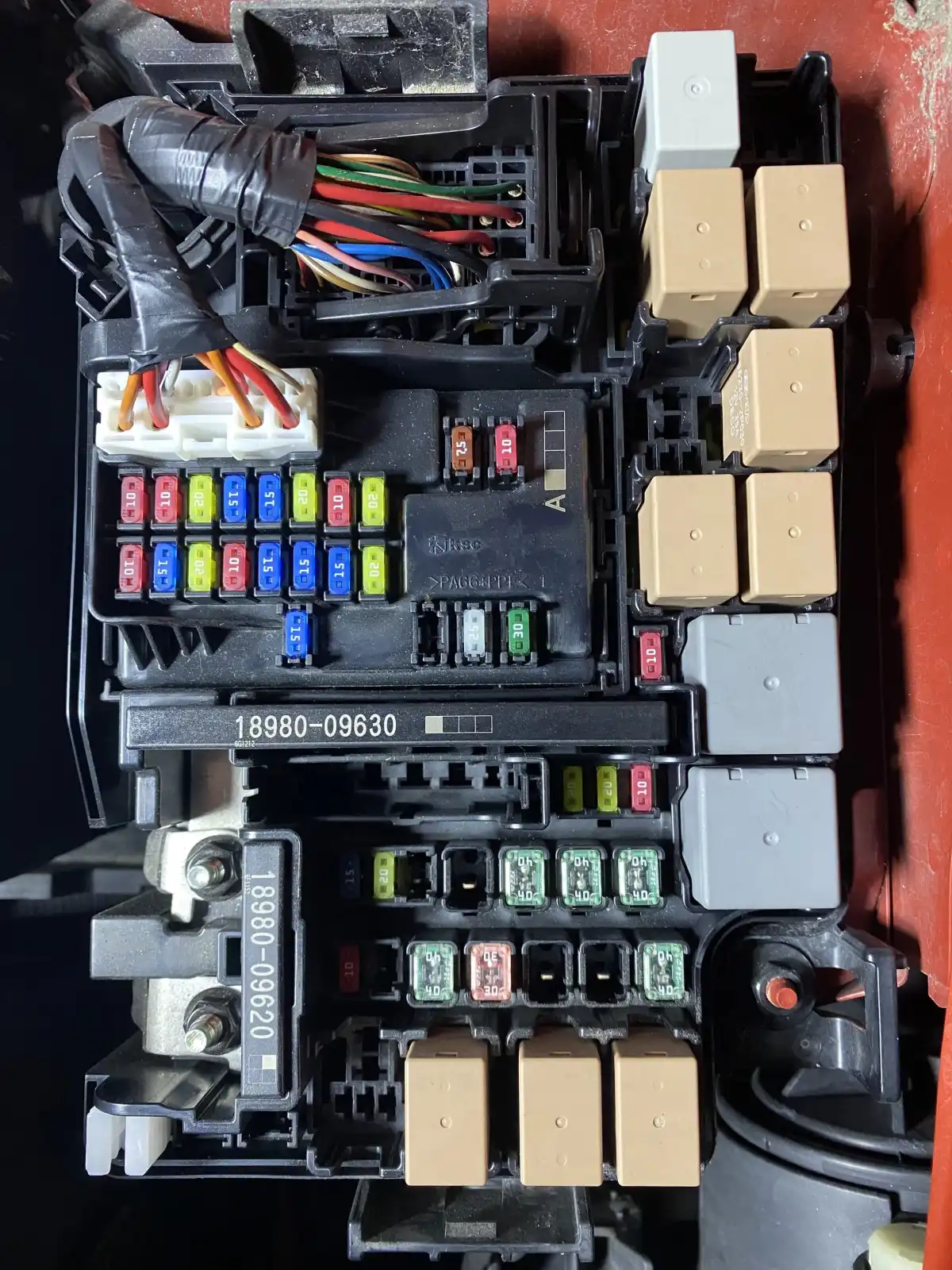

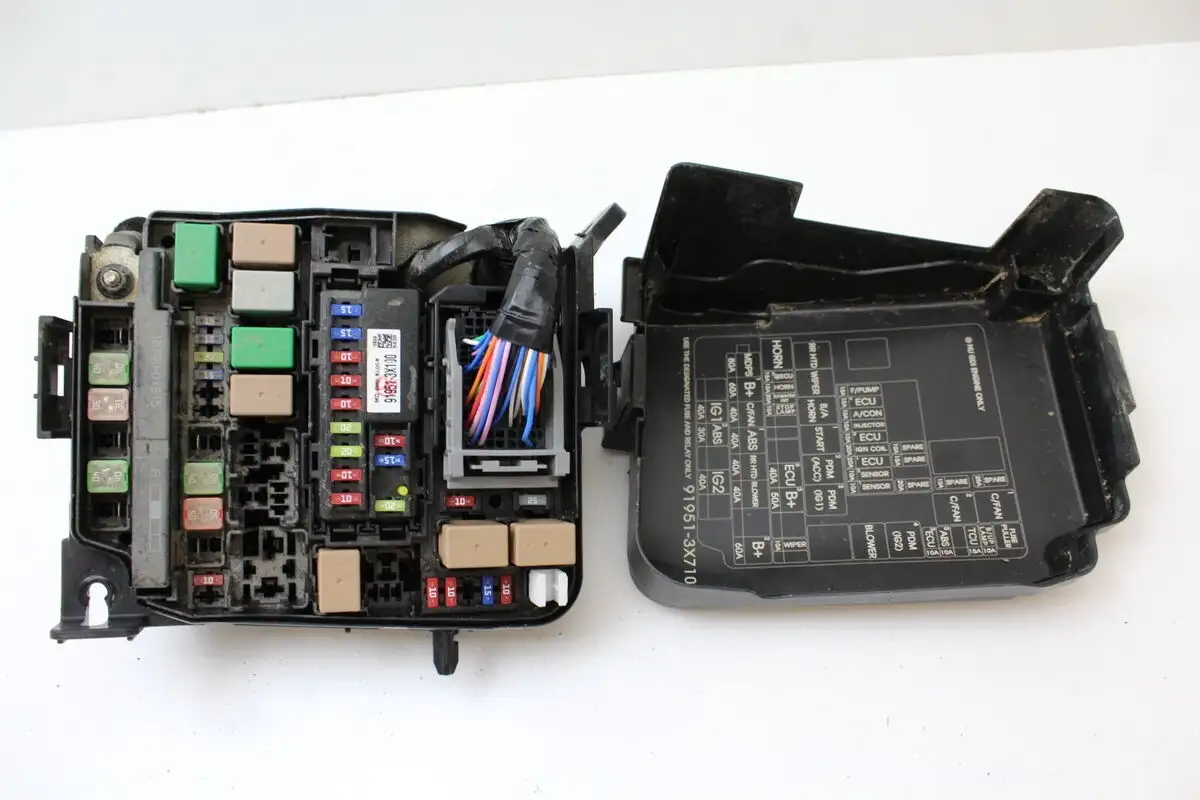

Engine Compartment Fuse Box: Found near the battery, this box is marked with a diagram sticker that makes it easy to identify critical electrical components like the cooling fan and ABS system.
Gather Your Tools
Use the fuse puller tool provided in your owner's kit, ensuring you do not damage the fuse or surrounding components.
Have a multimeter handy to test fuses for continuity, ideally measuring a range between 0.5 to 1.0 ohms.
Identify Fuse Specifications
Verify the amperage rating by comparing fuse colors and labels. A quick reference:
Color | Amperage |
|---|---|
Yellow | 20A |
Blue | 15A |
Red | 10A |
Replace and Test
Once you remove a suspected blown fuse, insert a new one of the correct amperage. After installation, test your car to see if the problem has resolved.
Understanding Your Elantra's Fuse Box Layout
A clear grasp of the fuse box layout ensures you can pinpoint faults in your electrical system without stress.
Interior vs. Engine Compartment Fuse Locations
Dashboard Panel: This section supports various control modules including interior lights, power windows, and infotainment systems.
Engine Compartment Box: This area manages critical functions such as the cooling fan (commonly 30A), the ABS system (often 40A), and headlight relays that contribute to overall driving safety.
Decoding Diagram Symbols (2025 Model Specific)
To interpret your fuse box diagram accurately, familiarize yourself with commonly used symbols:
Symbol | Meaning |
|---|---|
⌖ | GPS antenna circuit |
⏻ | Start/Stop system relay |
⚠ | Hybrid battery safety (specific to HEV models) |
Maintaining Your Electrical System
Proper maintenance will reduce the risk of unexpected failures and extend the life of your vehicle's electrical components. Consider these tips for routine upkeep:
Check fuses monthly, particularly during intense summer heat which can affect fuse longevity.
Clean fuse contacts at least once a year with an electrical contact cleaner to avoid dust accumulation and corrosion.
Keep your cabin filter in good condition, as a clean filter helps prevent electrical shorts by reducing dust and debris buildup.
For those in the GCC region, remember that your vehicle’s components follow strict AED/SAR pricing and performance standards in line with GCC certified guidelines.
Troubleshooting Common Circuit Issues
When something goes wrong, a practical approach can save you time and money. Here are a few scenarios you might encounter:
Power Outlets Not Functioning: Check the dashboard fuse (e.g., #17, typically a 15A blue fuse) first. Ensure that no related relays are malfunctioning.
Turn Signals Malfunctioning: Inspect the corresponding fuse (for instance, #9, usually a 10A red fuse) and its nearby relay connections to see if they need replacement.
Intermittent Dashboard Warning Lights: If your instrument panel lights flicker, it might indicate a problem with alternator-related fuses (#24-26). Testing and replacing these fuses can often restore normal operation.
Always disconnect the battery before beginning any fuse work. For hybrid models, waiting at least 15 minutes after disconnecting helps to ensure that systems are fully de-energized.
FAQ
Q1:How often should I inspect my hyundai elantra fuse box diagram for potential issues?
It is advisable to check your fuse box every month, especially during extreme weather conditions. Regular inspections help catch early signs of wear and prevent unexpected electrical failures. Make it a habit to review your interior and engine compartment fuse boxes during routine vehicle maintenance. This proactive approach can save you from more severe electrical problems in the long run. Remember, periodic checks are key to a safe and reliable driving experience.
Q2:What tools do I need to properly replace a fuse in my 2025 Elantra?
You will need a fuse puller, which is usually provided in your car’s toolkit, along with a reliable multimeter for testing. This combination of tools ensures that you remove the fuse without causing damage and verify that the circuitry is functioning properly. It’s essential to have the correct replacement fuse that matches the amperage indicated by your diagram. Also, having a clean, well-lit workspace can make the process much smoother. Stay prepared and confident by keeping these tools handy in your vehicle.
Q3:Can I use any replacement fuse, or must it match the diagram exactly?
You must always use a replacement fuse that exactly matches the amperage and specifications provided by your diagram. Substituting fuses with different ratings can compromise your vehicle’s electrical system and may lead to further issues. Always cross-check with the diagram symbols and labels on your fuse box. Additionally, using the correct fuse helps ensure that your car complies with required operational and safety standards, such as those outlined in GCC regulations (AED/SAR pricing and standards).
Q4:What should I do if a fuse blows repeatedly?
Repeated fuse failure usually indicates an underlying electrical problem that should not be ignored. In such cases, it is best to consult with a professional technician who can thoroughly inspect your vehicle’s wiring and relay box. Replacing the fuse without addressing the root cause may lead to more serious damage and safety risks. Professional diagnostics can help pinpoint issues like short circuits or defective components. Taking these steps ensures your vehicle's electrical system remains safe and reliable.
This article is for reference only. Please refer to the latest local laws and regulations for guidance.
