How to Access the 2025 Elantra Fuse Box

Locating Your Fuse Panel

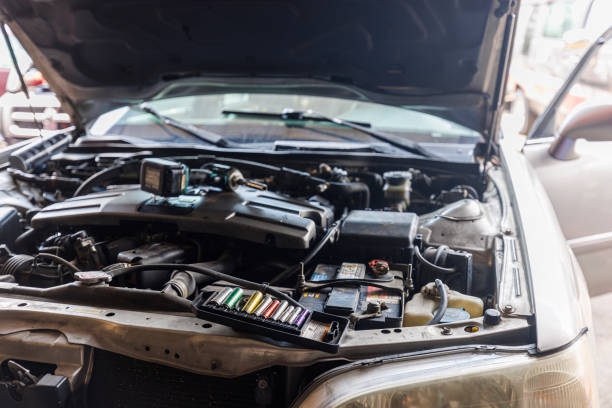

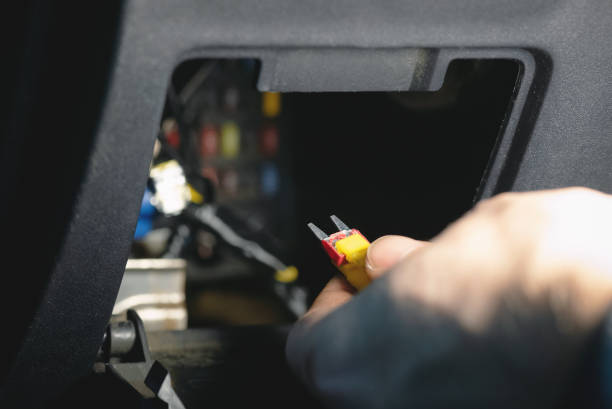

In your 2025 HyundaiUAE Hyundai Bahrain Hyundai Egypt Hyundai KSA Hyundai Kuwait Hyundai Oman Hyundai Qatar Hyundai Elantra, you will find two primary fuse boxes. One is located on the interior, just below the dashboard on the driver's side, while the other is housed in the engine bay near the battery compartment. This layout is designed for easy access and clear organization. When you open the interior fuse box, use the pull-tab handle, and for the engine bay, simply release the latch mechanism. This setup aligns with GCC certification standards to ensure you can perform fuse replacement safely and effectively.

Tools You'll Need

Make sure you have the right tools before starting:

Needle-nose pliers (AED 20-55 / SAR 20-55)
An LED test light (AED 30-70 / SAR 30-70)
Replacement fuses ranging from 10A to 40A (mini blade type)

Having these items ready will streamline the troubleshooting process and help you quickly resolve any fuse-related issues.

Understanding Your Elantra’s Fuse Panel Layout

Decoding the Fuse Diagram

Every fuse box in your 2025 Hyundai Elantra is clearly marked with numerical labels (like F21, F37), amperage ratings (such as 15A, 20A), and system labels that identify what each fuse controls (power windows, tail lights, etc.). The fuse diagram is an essential reference that can be found in your owner's manual. Keeping this diagram handy in your glovebox ensures you can quickly match the correct fuse type during maintenance or replacement.

3-Step Fuse Replacement Process

Understanding the right steps can save you time when a fuse blows. Follow this simple process:

Identify the Faulty Fuse

Inspect the fuse for any visible breakage in the filament.
Use an LED test light on both terminals to confirm that the fuse is indeed faulty.

Match the Specifications

Refer to the owner’s manual or fuse diagram to check the amperage rating (15A, 20A, etc.) and ensure you have the correct replacement.

Fuse Type	Typical Applications
10A	Dashboard electronics
20A	Power windows
30A	Cooling fan and similar systems

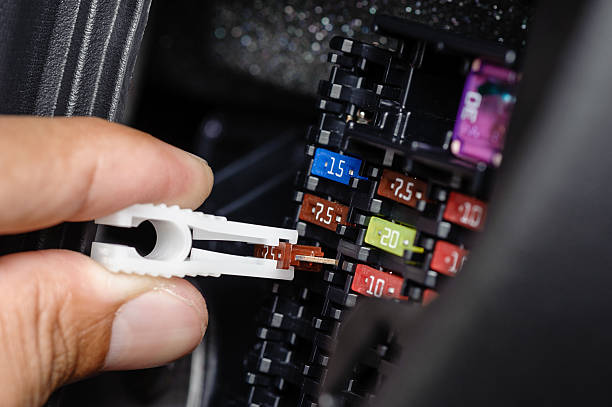

Install the Correct Fuse

Firmly press the new fuse into its slot until you hear a satisfying click.
Never attempt to force a fuse that does not fit, as using an oversized fuse can lead to recurring issues.

Preventing Electrical Issues in Modern Elantras

Climate Considerations and Maintenance Tips

High temperatures common in regions like the UAE can accelerate the degradation of fuses. Regularly check your fuse box every six months to ensure connections remain secure and fuses are not at risk of deteriorating. Monitoring your vehicle using an on-board diagnostics (OBD-II) scanner, which tracks voltage fluctuations and stray electrical drains, is a smart investment. This preventive approach minimizes unexpected electrical failures and aligns with GCC-certified maintenance practices.

Smart Monitoring

Invest in diagnostic tools to keep an eye on your car's electrical health. A quality OBD-II scanner (priced around AED 180-440 / SAR 180-440) can alert you to potential short circuits, parasitic drains, or irregular voltage levels. This way, you not only address current issues but also prevent future complications by staying ahead of possible faults.

When to Seek Professional Help

If you notice that multiple fuses are blowing repeatedly, or if there’s a persistent smell of burnt plastic near the fuse box, it's time to consult a Hyundai service center. Continuous warning lights even after fuse replacement are a clear signal of deeper electrical issues that require expert attention. Professional diagnostics can prevent further damage and ensure your vehicle meets GCC safety standards.

FAQ

Q1:Where exactly is the 2025 Hyundai Elantra fuse box located?

The fuse box is split between two locations:one is inside the vehicle, situated below the driver's dashboard, and the other is in the engine bay near the battery. This dual setup makes it convenient to access elements of your car’s electrical system. Regular inspections in both locations help ensure optimal performance and prevent unexpected failures. Always refer to your owner’s manual to pinpoint the exact location of each fuse box.

Q2:How do I read and understand the fuse diagram in my Elantra?

The fuse diagram is straightforward, displaying numerical labels, amperage ratings, and associated system functions such as power windows and tail lights. Each label corresponds to a specific electrical function, making troubleshooting more efficient. It’s advisable to keep a copy of the diagram in your glovebox for quick reference. This tool is essential for both routine maintenance and emergency fuse replacements.

Q3:What can cause fuses to blow frequently in my Hyundai Elantra?

Frequent fuse blowouts may indicate underlying electrical issues or short circuits. Factors like the extreme heat common in the UAE can exacerbate these problems. Using the correct fuse type and ensuring that the connections are secure are crucial preventive measures. If the problem persists, it might be wise to have your car inspected by a professional to ensure the entire electrical system is functioning properly.

Q4:How often should I check my 2025 Hyundai Elantra fuse box for potential issues?

Regular checks are recommended every six months to account for environmental impacts such as high temperatures in the UAE. Routine inspections help detect issues like loose connections or degraded fuses before they lead to bigger problems. Performing these checks as part of your regular car care routine can save you time and money. Invest in basic diagnostic tools to monitor voltage levels and other key indicators for best results.

This article is for reference only; please adhere to the latest local laws and regulations.
