For owners of the 2013 Ford Edge, maintaining your cabin air filter is key for a comfortable drive and a healthy car environment. This guide walks you through each step of replacing your filter, ensuring you understand every detail from DIY maintenance to cost comparisons. Stay ahead with top tips and insights that blend modern 2025 trends with practical solutions designed for GCC climates.
How to Replace Your Cabin Air Filter in 6 Steps
Tools You'll Need for a DIY Replacement
Before you begin, make sure you have these essential tools:
A Phillips screwdriver for unscrewing components
A high-quality new cabin air filter (recommended brands include Fram CF11934 and Motorcraft FP67)
A reliable flashlight to illuminate tight spaces
Work gloves to protect your hands during the process
Having these items at hand enables you to replace your filter safely and efficiently. These tools are standard for anyone looking to improve their in-car air quality and perform effective DIY maintenance.
Step-by-Step Replacement Process
Follow these six clear steps to replace your cabin air filter without hassle:

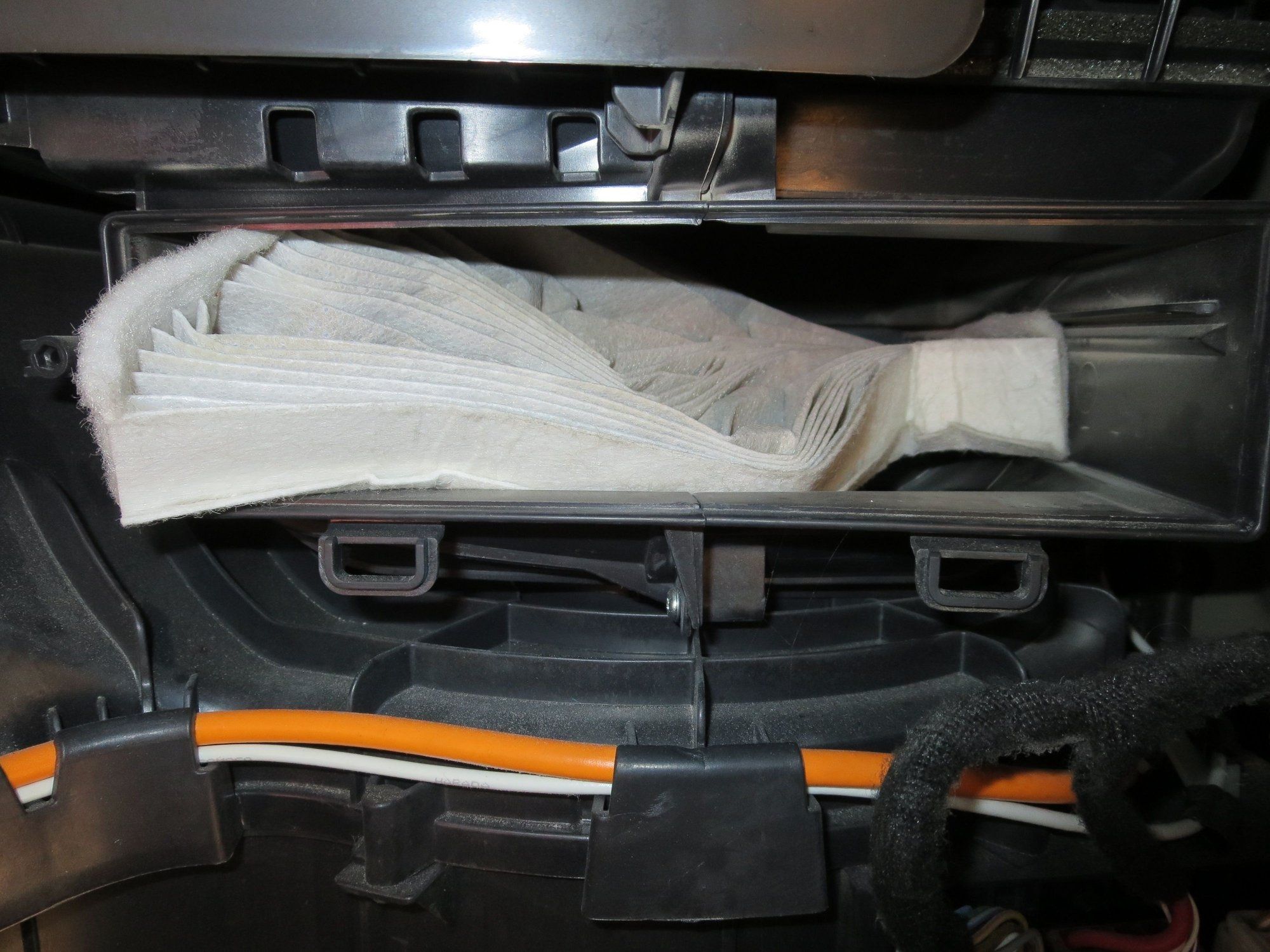

Locate the Filter Housing: Open your glove compartment and find the access panel behind it. This area houses your cabin air filter and is usually secured with screws.
Remove the Glove Compartment Assembly: Use your Phillips screwdriver to remove the 5 screws holding the assembly in place. Take care not to misplace any screws.

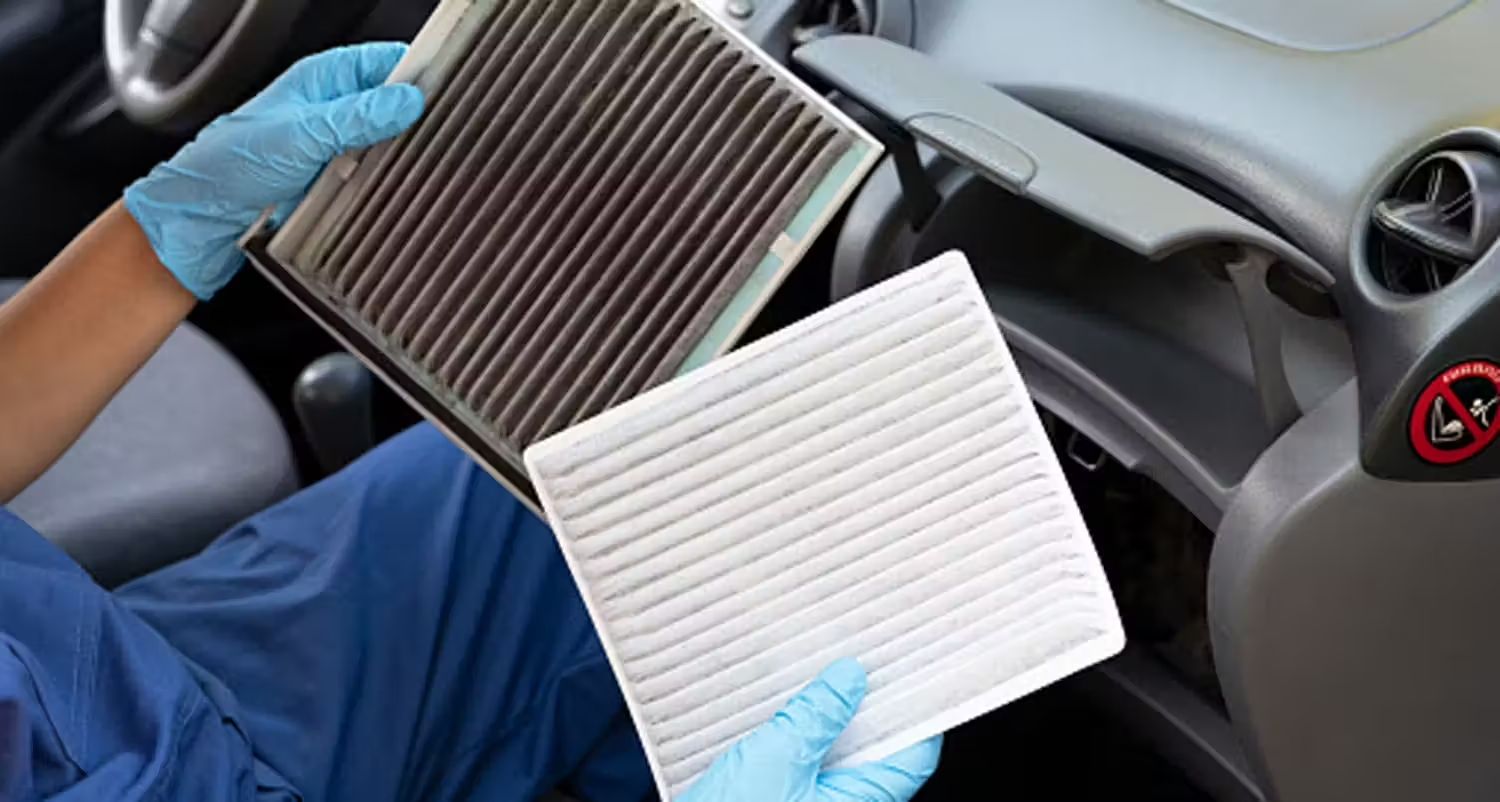

Extract the Old Filter: Carefully pull out the old filter. Observe the airflow direction arrows printed on the filter to ensure proper installation later.
Clean the Filter Housing: Vacuum the area to remove any accumulated dust and debris. This step is essential for maximizing the lifespan of your new filter.
Insert the New Filter: Place the new cabin air filter into the housing, ensuring the airflow arrows are correctly aligned with the direction of the incoming air.
Reassemble the Components: Put everything back in reverse order. Reattach the glove compartment assembly securely with the screws you removed earlier.
Below is a quick reference table comparing common mistakes with expert 2025 tips:
Common Mistakes | 2025 Pro Tip |
|---|---|
Forcing the filter into the housing | Lightly lubricate the filter edges with soapy water |
Ignoring the airflow direction | Take a clear photo before removing the old filter |
Over-tightening or stripping screws | Use a magnetic screw holder to avoid losing screws |
When Should You Change the Filter?
Understanding the correct replacement frequency can save you from unexpected issues. Consider these intervals:
Standard Replacement: Change every 12-15 months under normal driving conditions.
UAE Climate Adjustments: Due to sand and elevated humidity, consider replacing the filter every 9 months.
High Pollution Areas: If driving in areas with heavy dust or pollution, a 6-month interval can be beneficial.
Be aware of warning signs that indicate a dirty filter:
Noticeably reduced AC airflow, sometimes up to 38% less on maximum settings.
Persistent musty odors even after turning on the air conditioning.
An unusual whistling sound from the vents, which may suggest clogging.
Increased allergy symptoms or discomfort during drives.
2025 Cost Comparison:DIY vs Professional Service
When planning your maintenance budget, consider these cost estimates in AED/SAR:
Service Type | Average Cost (AED/SAR) | Time Required |
|---|---|---|
Dealership Service | 450-600 | Approximately 45 minutes |
Local Garage | 250-350 | Around 30 minutes |
DIY Replacement | 80-120 | Roughly 20 minutes |
DIY replacement saves you money while ensuring your vehicle meets the GCC certified standards for cabin air quality. Evaluating these figures can help you decide whether to handle the task yourself or seek expert help.
Improving Air Quality with Modern Filters
Advancements in filter technology are making it easier to maintain a clean cabin environment, and 2025 introduces notable improvements:
Enhanced Filtration Efficiency: Activated charcoal layers now remove up to 98% of harmful particulates.
Antimicrobial Coating: This new technology extends filter life by roughly 30% especially useful in humid conditions common across the GCC.
Eco-Friendly Materials: With more than 70% of filters now using biodegradable materials, you contribute to a greener environment while keeping your car fresh.
Maintenance Pro Tips
Clean your vehicle's surrounding vents monthly using a microfiber cloth.
Switch your AC to fresh air mode for five minutes on a weekly basis.
Consider upgrading to a HEPA-grade filter if you suffer from allergies.
Schedule regular seasonal checkups that include filter inspections to catch issues early.
FAQ
Q1:How do I know if it’s the right time to replace my cabin air filter?
If you notice reduced airflow from your AC, a persistent musty smell, or unusual noises from your vents, these are good indicators that your filter may be clogged. Additionally, driving in sandy or humid conditions typical of the UAE can accelerate filter wear. Regular inspections every few months can help you stay ahead of major issues. Remember, timely replacement not only maintains air quality but also ensures better performance of your vehicle’s HVAC system.
Q2:What are the risks of not replacing the cabin air filter on time?
Failing to replace a clogged filter can result in reduced air circulation and compromised air quality inside your vehicle. This may lead to increased allergens and pollutants entering your cabin, potentially causing respiratory discomfort. Moreover, a dirty filter can overburden your car's AC system, leading to inefficient cooling and higher energy consumption. Proactive maintenance is the key to avoiding these issues while keeping repair costs low in the long run.
Q3:Are the DIY replacement steps safe for someone with limited technical skills?
Absolutely! The provided steps are designed to be simple and clear, even for first-time DIY enthusiasts. With basic tools and a little patience, you can perform the replacement safely in roughly 20 minutes. However, if you feel uncomfortable at any stage, it might be best to seek professional assistance. Always refer to your car’s manual and follow safety guidelines strictly during the process.
Q4:How do modern filter technologies improve in-car air quality?
Modern filters feature technologies such as activated charcoal layers and antimicrobial coatings. These advancements remove a high percentage of particulates and harmful substances from the air. They also extend the lifespan of the filter in challenging climates, ensuring that your car's interior remains clean and free from allergens. Switching to these advanced filters means you can enjoy a healthier driving experience with less frequent maintenance interruptions.
Q5:Can I use the same replacement interval for all driving conditions?
The replacement interval can vary significantly depending on your driving environment. For example, standard driving in urban areas may allow you to stick to the 12-15 month interval, while dusty or high-humidity conditions common in the UAE might require more frequent changes, such as every 6-9 months. It is vital to tailor your maintenance routine to local conditions and your individual driving habits. This proactive approach ensures optimal performance and longevity of your cabin air filter.
This article is solely for informational purposes; please refer to the latest local laws and regulations for compliance.
